QR Factorization

CPSC 406 – Computational Optimization

Overview

\[ \def\argmin{\operatorname*{argmin}} \def\Ball{\mathbf{B}} \def\bmat#1{\begin{bmatrix}#1\end{bmatrix}} \def\Diag{\mathbf{Diag}} \def\half{\tfrac12} \def\int{\mathop{\rm int}} \def\ip#1{\langle #1 \rangle} \def\maxim{\mathop{\hbox{\rm maximize}}} \def\maximize#1{\displaystyle\maxim_{#1}} \def\minim{\mathop{\hbox{\rm minimize}}} \def\minimize#1{\displaystyle\minim_{#1}} \def\norm#1{\|#1\|} \def\Null{{\mathbf{null}}} \def\proj{\mathbf{proj}} \def\R{\mathbb R} \def\Re{\mathbb R} \def\Rn{\R^n} \def\rank{\mathbf{rank}} \def\range{{\mathbf{range}}} \def\sign{{\mathbf{sign}}} \def\span{{\mathbf{span}}} \def\st{\hbox{\rm subject to}} \def\T{^\intercal} \def\textt#1{\quad\text{#1}\quad} \def\trace{\mathbf{trace}} \]

• Orthogonality
• QR properties
• Solution of linear least-squares problems

Orthogonal vectors

Two vectors \(x\) and \(y\) in \(\Rn\)

• recall cosine identity \[ x\T y = \|x\|_2\|y\|_2\cos\theta \]

• \(x\) and \(y\) in \(\mathbb{R}^n\) are orthogonal if \[ x\T y = 0 \quad (\cos\theta = 0) \]

• \(x\) and \(y\) are orthonormal if \[ x\T y = 0, \quad x\T x = 1, \quad y\T y = 1 \]

• a set of orthogonal \(n\)-vectors \(\{q_1,\ldots,q_m\}\) are linearly independent

  • if \(m=n\) then it’s a basis for \(\Rn\)

Orthogonal matrices

An \(n\times r\) matrix \(Q\) is orthonormal if its columns are pairwise orthonormal: \[ Q = [q_1\ | \cdots |\ q_r], \qquad Q\T Q = \begin{bmatrix} q_1\T q_1 & q_2\T q_1 & \cdots & q_r\T q_1 \\ q_1\T q_2 & q_2\T q_2 & \cdots & q_r\T q_2 \\ \vdots & \vdots & \ddots & \vdots \\ q_1\T q_r & q_2\T q_r & \cdots & q_r\T q_r \end{bmatrix} = I_r \]

• if \(r=n\) (ie, \(Q\) is square) then \(Q\) is orthogonal \[ Q^{-1} = Q\T \quad\text{and}\quad Q\T Q = QQ\T = I_n \]

• orthogonal transformations preserve lengths and angles \[ \|x\|_2 = \|Qx\|_2 \textt{and} x\T y = x\T Q\T Qy = (Qx)\T(Qy) \textt{and} \det(Q) = \pm 1 \]

Question: Orthogonal matrices

Let \(Q\) be an \(n\times n\) orthogonal matrix (so \(Q^T Q=I_n\)). Which of the following statements is always true for any vectors \(x,y\in\Rn\)?

1. \(\|Qx\| = \|x\|\), but \(\|Qy\| \neq \|y\|\)
2. \((Qx)\T(Qy) = x\T y\)
3. \(\det(Q) = +1\)
4. \(\|Qx\| \ne \|x\|\), and angles are distored by \(Q\)?

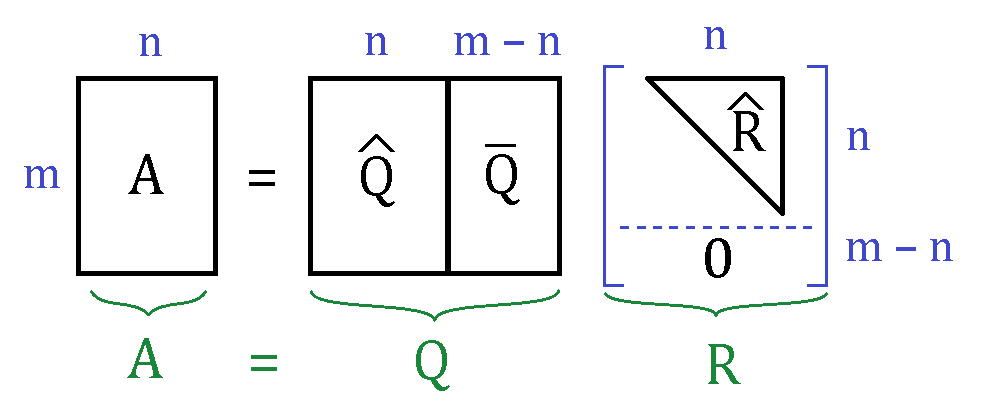

QR Factorization





where

1. \(Q\) is orthogonal (\(Q\T Q = Q Q\T = I_m\))
2. \(\hat R\) is upper triangular (\(\hat R_{ij} = 0\) for \(i > j\))
3. \(\range(\hat{Q})=\range(A)\)
4. \(\range(\bar{Q})=\range(A)^\perp \equiv \Null(A\T)\)

using LinearAlgebra
Q, R = qr(A)

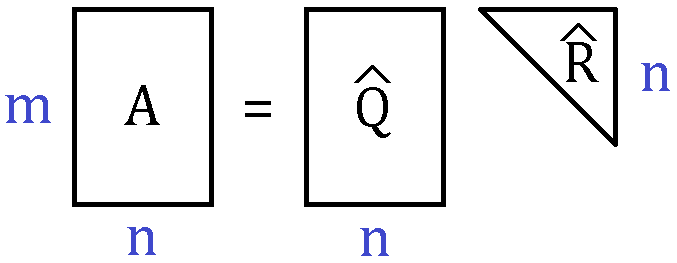

Reduced QR Factorization

For \(A\) \(m\times n\) with \(m\geq n\), full rank





taking column by column, with \(\hat Q=[q_1\ |\ \cdots\ |\ q_n]\) \[ \begin{align*} a_1 &= r_{11}q_1 \\ a_2 &= r_{12}q_1 + r_{22}q_2 \\ a_3 &= r_{13}q_1 + r_{23}q_2 + r_{33}q_3 \\ &\vdots \\ a_n &= r_{1n}q_1 + r_{2n}q_2 + \cdots + r_{nn}q_n \end{align*} \]

Question: Columns of \(Q\)

Let \(A\) be an \(m \times n\) matrix (\(m \ge n\)) of full column rank, and suppose \(A = QR\) is its reduced QR factorization. The columns of \(Q\) form an orthonormal basis for which of the following subspaces?

• A. The row space of \(A\)

• B. The column space of \(A\)
• C. The null space of \(A\)
• D. The orthogonal complement of the column space of \(A\)

Nonsingular equations with QR

Given \(n\times n\) matrix \(A\), full rank, solve \[ A x = b \] solve by QR factorization \(A = QR\) and \(Q\T Q = I\)

mathematically

\[ x = A^{-1}b = (QR)^{-1}b = R^{-1}Q^{-1}b = R^{-1}Q\T b \]

computationally



using LinearAlgebra
Q, R = qr(A)   # O(n^3) <-- dominant cost
y = Q'b        # O(n^2) <-- matrix-vector multiply
x = R \ y      # O(n^2) <-- triangular solve



Geometry of Least-Squares via QR

\[ \min_{x\in\Rn}\ \|Ax-b\|^2, \qquad A = QR \]

\[ \begin{align} \|Ax-b\|^2 &= (Ax-b)\T(Ax-b) \\ &= (Ax-b)\T Q Q\T(Ax-b) \\ &= \|Q\T(Ax-b)\|^2 \\ &= \left\|\begin{bmatrix} \hat R \\ 0 \end{bmatrix}x - \begin{bmatrix} \hat Q\T \\ \bar Q\T \end{bmatrix}b\right\|^2 \\ &= \underbrace{\color{DarkRed}{\|\hat R x - \hat Q\T b\|^2}}_{\small (1)} + \underbrace{\color{Green}{\|\bar Q\T b\|^2}}_{\small (2)} \end{align} \]

where (1) is minimized when \(\hat Rx=\hat Q\T b\) and (2) is constant

Question: Least-Squares and Orthogonal Projections

Consider the least-squares problem \[ \min_{x \in \mathbb{R}^n} \|A x - b\|, \] Let \(A = QR\) and \(c = Q^T b\). Which of the following best describes the meaning of c$?

• A. \(c\) is the orthogonal projection of \(b\) in the original space.

• B. \(c\) is the coordinate vector of the projection of \(b\) onto the column space of \(Q\).

• C. \(c\) is orthogonal to every column of \(Q\).

• D. \(c\) has no geometric interpretation for the least-squares problem.

Solving Least-Squares via QR

\[ \min_{x\in\Rn}\ \|Ax-b\|^2, \qquad A = QR \]

mathematically

\[ \begin{align} A\T A x &= A\T b \\ R\T Q\T Q R x &= R\T Q\T b \\ Rx &= Q\T b\\ x &= R^{-1}Q\T b \end{align} \]

computationally



using LinearAlgebra
F = qr(A)                # O(n^3) <-- dominant cost
Q, R = Matrix(F.Q), F.R  # extract _thin_ Q, and R
y = Q'b                  # O(n^2) <-- matrix-vector multiply
x = R \ y                # O(n^2) <-- triangular solve



more numerically stable than solving \(A\T Ax = A\T b\) directly

Question: Geometric Interpretation of \(R\)

In the factorization \(A = QR\), with \(Q\) having orthonormal columns, what is the geometric interpretation of the triangular matrix \(R\)?

1. \(R\) is an orthogonal matrix that preserves angles and lengths.

2. \(R\) describes how the columns of \(A\) can be expressed as linear combinations of the columns of \(Q\), capturing their coordinates in the orthonormal basis.

3. \(R\) is the null-space basis of \(A\).

4. \(R\) is a diagonal matrix containing the singular values of \(A\).

Accuracy of QR vs Normal Equations

For \(\epsilon\) positive, this matrix has full rank because \(\sin^2(\theta)+\cos^2(\theta)=1\) \[ A = \begin{bmatrix} sin^2(\theta_1) & cos^2(\theta_1+\epsilon) & 1 \\ sin^2(\theta_2) & cos^2(\theta_2+\epsilon) & 1 \\ \vdots & \vdots & \vdots \\ sin^2(\theta_m) & cos^2(\theta_m+\epsilon) & 1 \\ \end{bmatrix} \]

using LinearAlgebra
θ = LinRange(0,3,400)
ε = 1e-7
A = @. [sin(θ)^2   cos(θ+ε)^2   θ^0]
xᵉ = [1., 2., 1.]
b  = A*xᵉ

xn = A'A \ A'b               # Compute xn via normal equations

Q, R = qr(A); Q = Matrix(Q)  # Compute xr via QR
xr = R \ (Q'b)

xb = A \ b                   # Compute xb via backslash

@show xn xr xb;

xn = [0.9195604391114242, 1.9195604388945233, 1.0804395609418005]
xr = [1.000000007591375, 2.000000007591374, 0.9999999924086256]
xb = [0.9999999998426099, 1.99999999984261, 1.0000000001573903]
